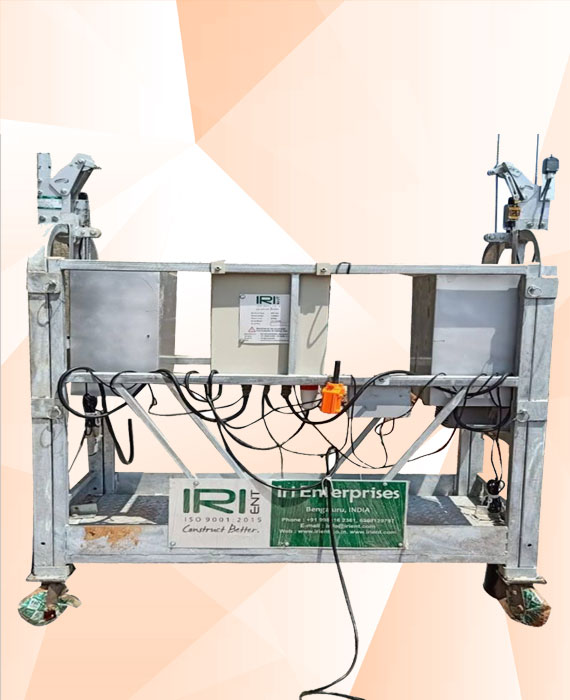

Suspended Rope Platform (SRP) or Rope Suspended Platform(RSP) is widely used for painting, plastering and other applications these days instead of Scaffoldings. The ease to install and safety makes it preferred choice for builders and contractors.
Technical Specification
| Rated Load (kg) | 800 Kgs |
| Hoist Speed | 8-9 M/Min |
| Hoist Type | Alpha Type Rope Holding Mechanism |
| Voltage | 415 V |
| Frequency | 50Hz |
| Power ( KW ) | 1.8×2 |
| Anti tilt safety lock | provided (2No.s) |
| Wire rope | 4No.s,8.6mm,4×31 galvanised construction grade, 45KN breaking force |
| Platform dimensions | Length: 7.5Mtrs(2.5+2.5+1.5+1)Width:2 Feet |
| Material | ISI Marked mild steel |
| Finish | Hot Dipped Galvanizing |
| Parapet Extension on Outer side (Top) | 6.8 Feet |
| Front Beam Height(Top) | 4.5 to 5.75 Feet(Adjustable distance of 100mm) |
| Electric Cable | ISI Marked 2.5mm x 5 core |
| Counter Weights | 1100 – 1200 Kgs (50 No.s) Made of Concrete |
Safety:
- Electro-Magnetic Brake motor with manual release system.
- 2 Nos Anti Tilt Safety lock.
- 2 Nos Anti-tilt limit switch provided with release button for additional protection from over tilting of platform.
- 2 Nos Limit Switch for over travel cut off.
- Emergency Stop Button Provided.
Additional Safety Options:
- Load Cell with digital display option provided for weight monitoring and cut of in case of overload.
- Anti-Swing System that minimizes the swaying of the platform during working. This is very effective during Plastering and other jobs where stability is vital.
- Cable damage preventer can be provided to protect the cable from damage during operation.
